Fardriver Controller ND72260-Mini12 Tiny 72V BLDC Controller
FarDriver controller is a sine wave type controller, which is brushless DC controller with self-learning function. Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.
If you have interested in this product, you can contact with our sales directly.
Sales Contact: damon@siaecosys.com
Skype: Damon Wong(QSMOTOR)
What’s app: +86 18758618893
Aliexpress online purchasing link for this motor:(Click the photo for hyperlink)
One set including the following items:
1. 1pcs X Fardriver ND72260-Mini12 Sine Wave Hall Motor Controller
2. 1pcs X Bluetooth Adapter
Key Features
1). All the raw materials are imported, using high-performance Moss tubes
2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board
3). Small in size
4). High efficiency, low temperature rise, small running current
5). With self-learning function, excellent commonality
6). The app is compatible with Android and Apple
7). With flux weakening function.(The product does not contain magnetism)
Product Description
ND72260-Mini12 is a sine wave controller with waterproofing grade IP67, suitable for 1500W motors.
For ND72260-Mini12, the rated voltage is 72V, It’s hall version (as default), which suits hall motors.

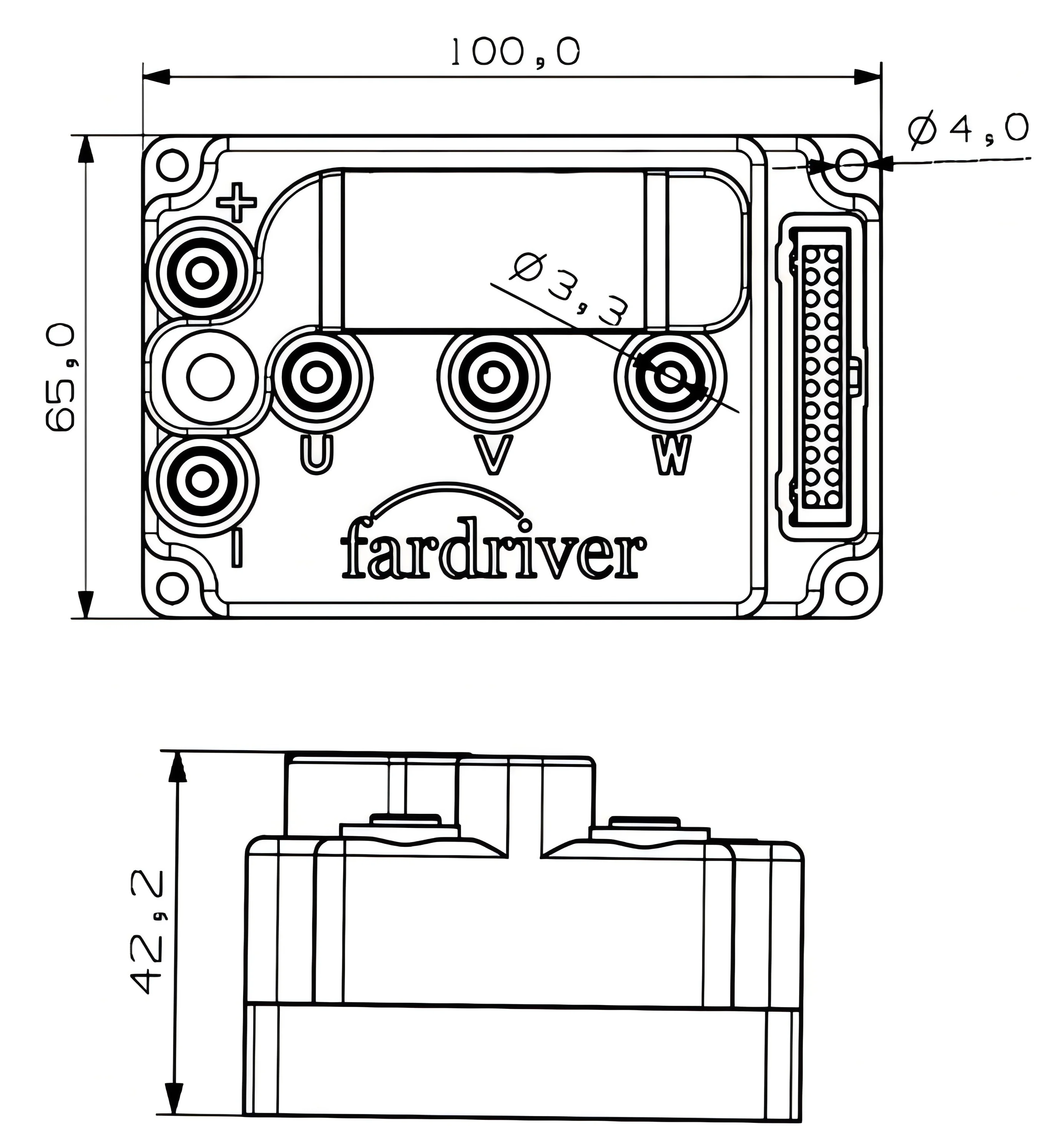

Drawing

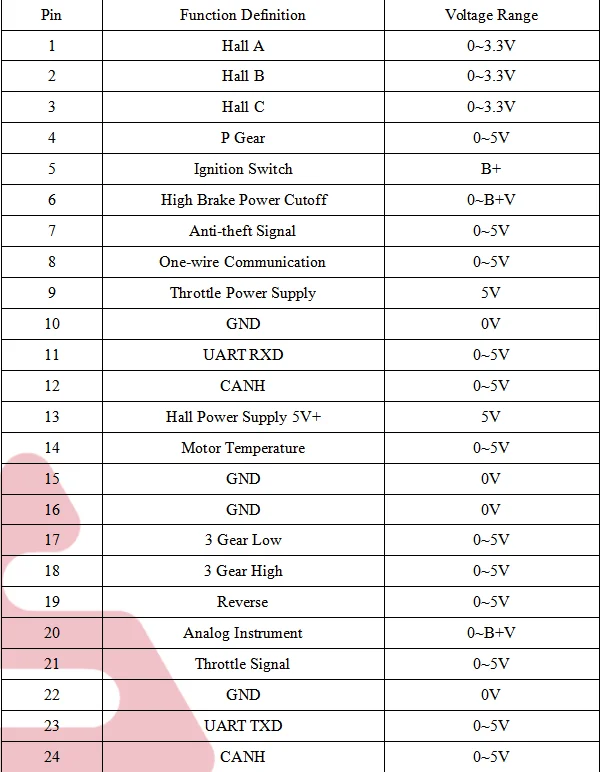

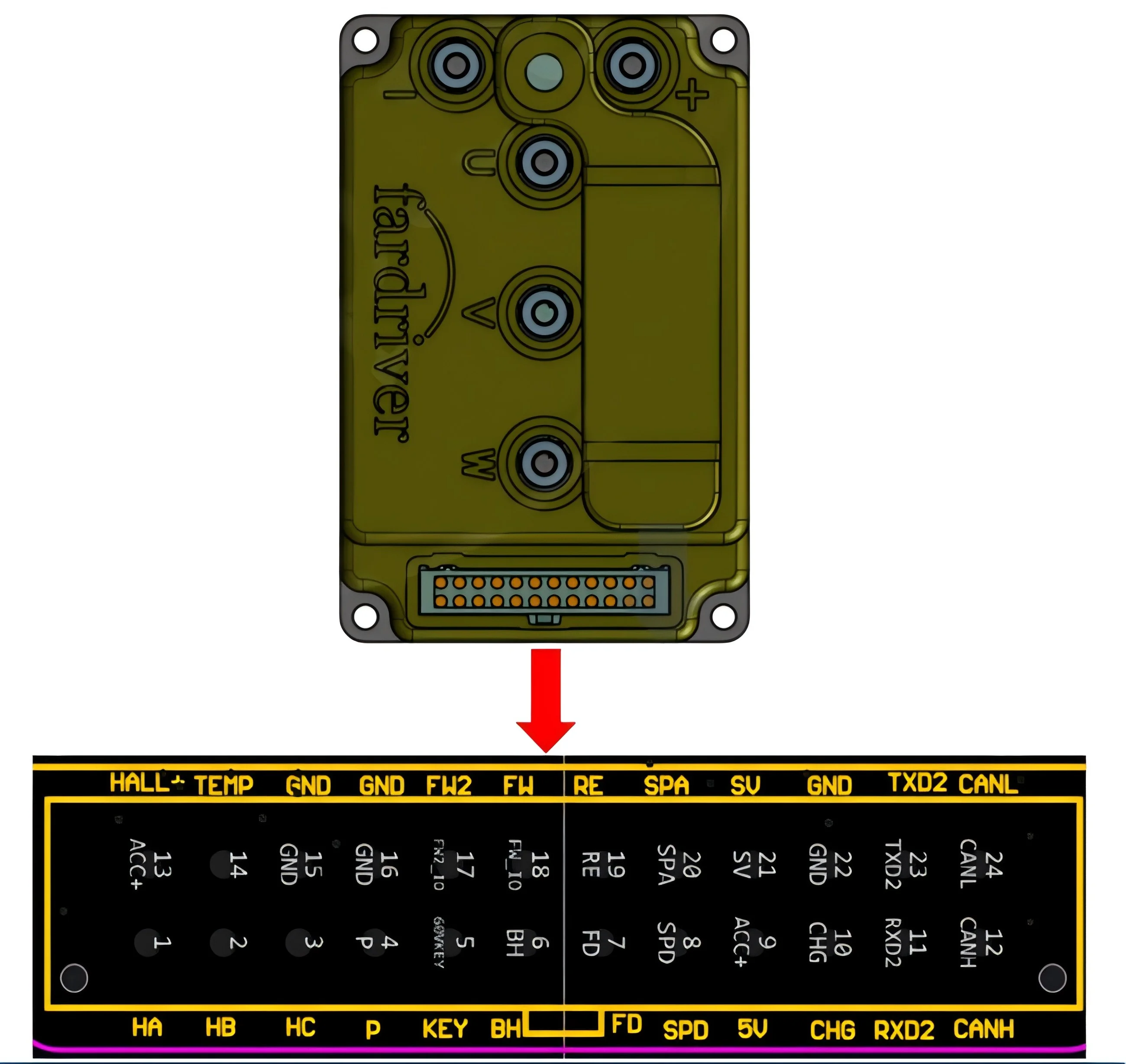

Harness Definition
Adapter Cable
