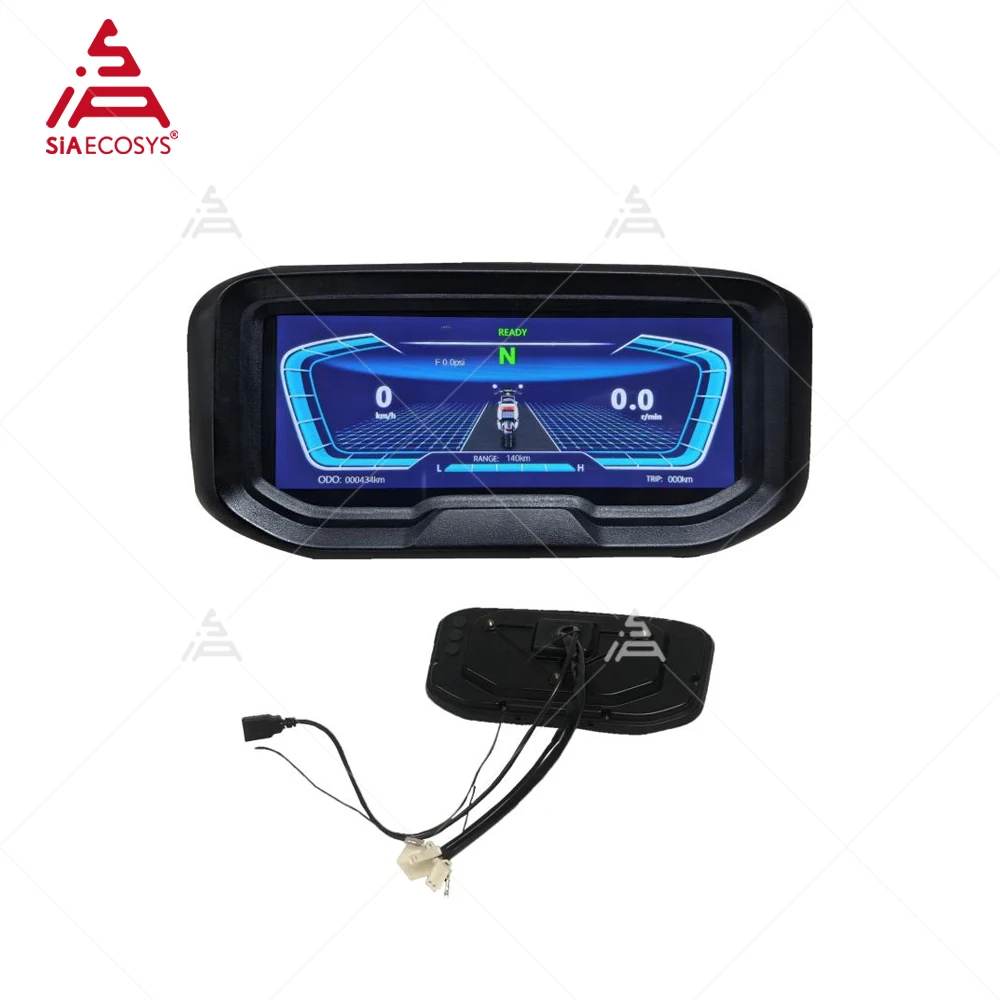

SCJ6877-E Adjustable 6.8 inch Electric Scooter Speedometer
If you have interested in this product, you can contact with our sales directly.
Sales Contact: damon@siaecosys.com
Skype: Damon Wong(QSMOTOR)
What’s app: +86 18758618893
Aliexpress online purchasing link for this motor:(Click the photo for hyperlink)
1. The mobile phone Bluetooth connection for the meter projection function does not require iOS or Android phones to install an APP. Bluetooth name: METER – CJ**** (the last 4 digits change randomly).
2. 4 main meter interfaces can be switched freely; Key + TP full – touch function, one-key screen lock function.
3. Multimedia function: FM radio playback.
4. Wide operating voltage of the meter: DC12 – 150V.
5. Power amplifier output: 8W/4Ω * 2 channels, USB software upgrade function.
6. The meter supports universal display of lithium battery and lead – acid battery power.
7. Pixels: 480*1280, Protection class: IP65, Operating Ambient Temperature Range: -20°C — +70°
8. Backend configurable: Adjustable power, voltage and speed; switchable Chinese/English; switchable metric/imperial units; optional remaining range; viewable software version, etc.

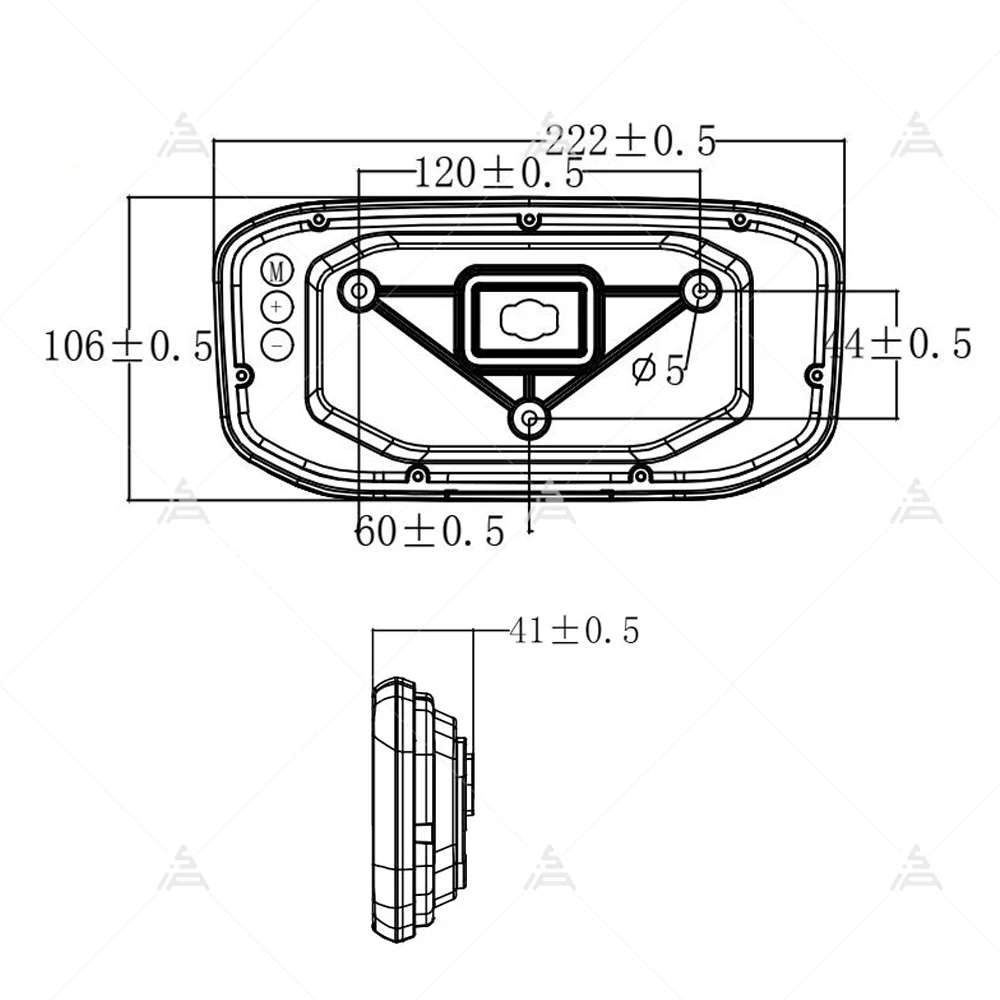

Drawing
Wiring Definition
